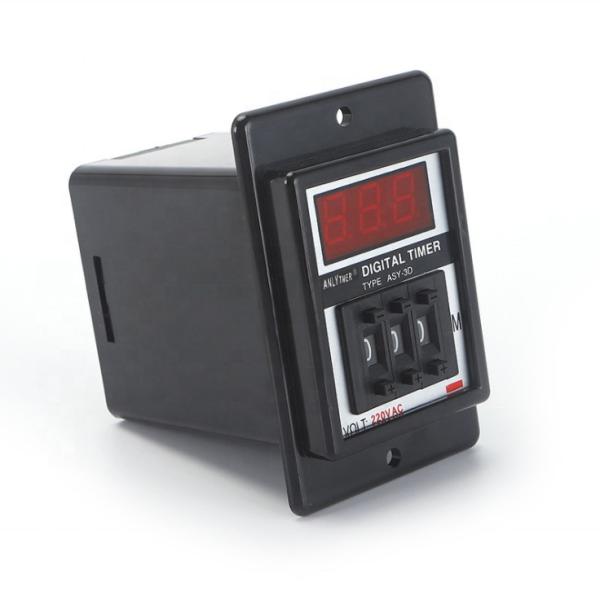

ASY-3D 999S/999M/999H Digital Time Relay 110V/220V/380V/24VDC/12VDC

Name: ASY3D 999S999M999H Digital Time Relay 110V220V380V24VDC12VDC
Brand: Kampa,OEM
Price: 4.30 USD

China ASY-3D 999S/999M/999H Digital Time Relay 110V/220V/380V/24VDC/12VDC factory

Place of Origin : Zhejiang, China

Brand Name : Kampa,OEM

Model Number : ASY-3D

Theory : Time Relay

Usage : General Purpose

Size : Miniature

Protect Feature : Sealed

Contact Load : Low Power

Product name : Time Relay ASY-3D

Voltage : 110V,220V,380V,24VDC,12VDC

Contact capacity : AC220V 3A; DC30V 5A

Type : Delay Time Relay

Ambient Temperature : -10℃~+50℃

Mechanical life : 10*10 5times

Electric Life : 10*10 4times

Reset time : Max 0.3sec±0.05

Color : Black

Weight : approx.220g

Packaging Details : Standard Export Carton

Port : NingBo/Shanghai

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 100 Pieces

Price : $4.30 - $6.00/Pieces

Contact Now

ASY-3D 999S/999M/999H Digital Time Relay 110V/220V/380V/24VDC/12VDC

Product Description

ASY-3D 999S/999M/999H Digital Time Relay 110V/220V/380V/24VDC/12VDC

Description:

Dimensions	88H×58W×68D
Mounting & Socket	Flush(-Y) US-08 P3G-08
Full timing range	SEC: 9.99, 999
	MIN: 99.9, 999
	HR: 99.9, 999
Rated voltage	DC(V):12 24
Rated voltage	AC(V):12 24 110 220 240 380 50/60Hz
Display	LED
Contact O/P	Time limit 1C Instantaneous 1C 5A Resistive load.
Life	Mechanical 5×106times
Life	Electrical 1×105times
Accuracy	Repeat error ±0.5%max
	Setting error 0
	Voltage error ±0.05 sec
	Temp.error ±0.05 sec
Reset time	0.3sec max
Insulation resistance	100MΩ(DC 500V)min
Dielectric strength	1500VAC
Consrmed power	3VA
Ambient temperature	-10℃~+50℃
Ambient humidity	48~85%RH
Weight	230g

ASY-3D 999S/999M/999H Digital Time Relay 110V/220V/380V/24VDC/12VDC
